WH型滑块联轴器适用于传递转矩较小的场合,具有   补偿两轴相对偏移量,减震和缓冲的性能,工作温度为-20-+70℃!...
立即订购
产品详情

WH型滑块联轴器适用于传递转矩较小的场合,具有   补偿两轴相对偏移量,减震和缓冲的性能,工作温度为-20-+70℃!

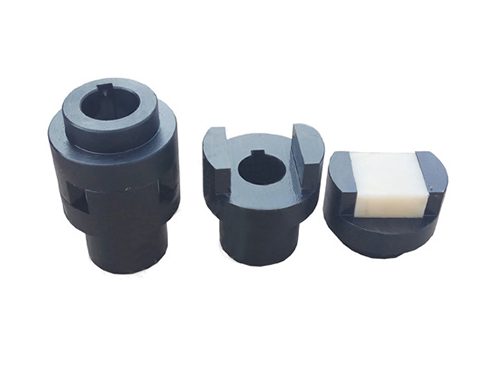

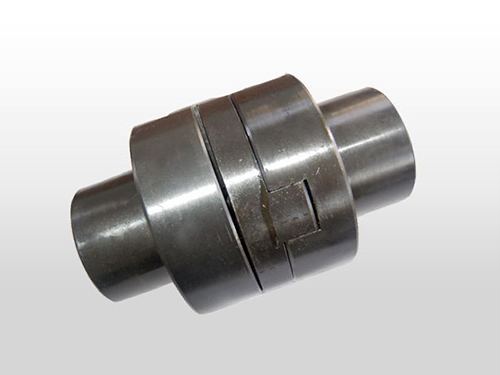

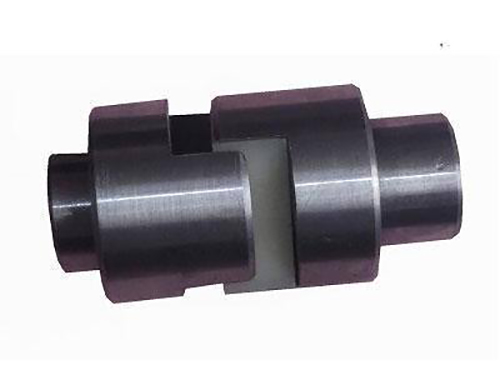

WH型滑块联轴器是无弹性元件联轴器的一种,主要用于允许两轴有径向偏移的联接,由两端面有凹槽的半联轴器和中间的方形滑块组成,利用中间滑块在其两侧半联轴器端面的相应径向槽内滑动,以实现两半联轴器联接。

型号公称转矩Tn(N.m)许用转速[n]r/min轴孔直径轴孔长度DD1B1B2l转动惯量Kg.m2质量kg
d1 d2YJ1
L
WH1161000010,11 12,1425-3222-274030521350.00070.6
32-4227-30
WH231.5820012,12,16,(17),185032561850.00381.5
WH363700016,(17),18,20,2242-5230-387040601850.00631.8
52-6238-44
WH4160570020,22,24,25,288050641880.0132.5
WH5280470025,28,30,32,3562-8244-60100707523100.0455.8
82-11260-84
WH6500380030,32,35,38,40,42,45120809033150.129.5
WH7900320040,42,45,48,50,551128415010012038250.4325
112-14284-107
WH81800240050,55,60,63,65,7019012015048251.9855
WH93550180065,70,75,80,85172-212132-16733019018058404.985
172-212132-167
WH105000150080,85,90,95,10033019018058407.5120
